Packaging and palletizing robots from KUKA
KUKA offers a comprehensive range of palletizing robots – for palletizing, depalletizing and packaging applications with payloads from 40 to 1,300 kilograms and reaches of up to 3,601 millimeters.
The new pace of palletizing.
KUKA palletizing robots offer an unrivaled variety of options.
High speed – with an extremely large work envelope, minimum interference contours and maximum robustness: KUKA palletizing robots embody all that is needed for perfect robotic automation. We cover the payload range from 40 kg to 1,300 kg with an unparalleled variety of robots.
All KUKA palletizing machines are specially designed for demanding palletizing and depalletizing tasks. The result is short cycle times and increased throughput combined with low space requirements and high cost-effectiveness.
All models have a specially designed robotic arm, the PC-based KR C5 robot controller and the KUKA smartPAD teach pendant.
They will give your business a lift. The advantages of KUKA palletizing robots.
Powerful: The palletizers from KUKA are among the fastest palletizers on the market – while also offering utmost precision and repeatability. With their streamlined, lightweight design, palletizing robots achieve greater dynamic performance, shorter cycle times and higher throughput of stacking of pallets, boxes or bags.
Versatile: Our palletizers come with a wide range of different payload capacities, reaches and special variants, ensuring that you will always find the right solution, no matter how challenging the palletizing task. All interfaces and energy supply systems are designed for versatility.
Compact: The compact and streamlined design of all palletizing robots enables quick and easy integration into existing systems. Their low disruptive contours extend the effectively usable workspace and allow innovative cell concepts.
Minimal maintenance: All components of the palletizers are equipped with low-wear drive trains. Thanks to their advanced and robust design, they have extremely long maintenance intervals – with an availability of 99.995 percent and maximum energy efficiency.
Customized robot-based palletizing system for more efficiency on conveyor
Palletizing robots from KUKA stack the heaviest loads on conveyor with a gripper that has the utmost precision – and have minimal space and maintenance requirements.
KUKA robot range for packaging and palletizing.
The right specialist for every taste.

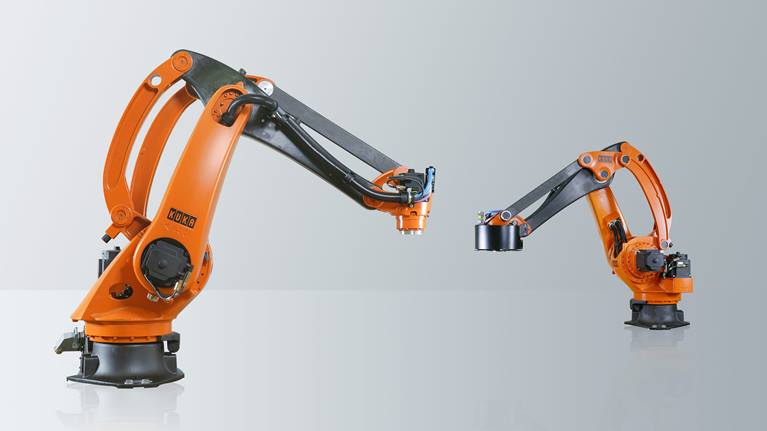

Speed robotic palletizer for medium payloads (KR 40 PA)
Our robots for the palletizing of medium payloads (up to 40 kilograms) are very fast, reaching a top working speed of up to 56 cycles per minute. The palletizing robots for medium payloads also stand out in terms of reach – and are thus perfectly suited to the precise stacking of europallets. The four-axis kinematic system enables pallets to be stacked up to a height of 1.8 meters.
Find out more about the KR 40 PA and its capabilities.
Automatic palletizer stacks euro pallets faster than any other robot – up to a height of 1.8 meters.
Robotic palletizers for high payloads (QUANTEC series)
The KR QUANTEC PA are the fastest, most precise and most powerful robots in their class. The streamlined design and low weight enable maximum dynamic performance and unbeatable precision. The KR QUANTEC PA machines are thus perfectly suited to challenging palletizing tasks with load capacity from 120 to 240 kilograms and maximum reaches – including the Arctic version designed specially for use in cold-storage rooms. They can be used to stack multiple pallet handling to a great height effortlessly. KUKA also offers the palletizing robot in a “Hygienic Oil” (HO) variant, which uses food-compatible NSF H1 lubricants in all axes and the energy supply system.
The palletizer of the KR QUANTEC PA family meets all of today’s automation requirements: minimized space requirements, shorter cycles, maximum availability and low operating costs.
Robotic palletizer in the cold room: KR QUANTEC PA Arctic
Even the frostiest temperatures are no challenge for the Arctic version of the KR QUANTEC PA. The industrial robot palletizes precisely and quickly even at temperatures as low as - 30 ° C and, with its resistance to cold, proves to be the only robot on the market that palletizes completely without a protective cover and mechanical heating. In addition, it has an energy supply system up to the flange that is designed for extreme cold, making it the perfect robotic palletizing solutiont for the food industry.
See for yourself the performance of the Arctic design.
Proven robotic automation solution to palletise products inside cold room store. Perfect as the floor level palletizer or high-level palletizer
Robotic palletizers for heavy loads up to 700 kilograms
KUKA palletizing machines for heavy loads can get to grips with far more. As well as their high load capacity, combined with a reach of up to 3,150 millimeters, they stand out for their extremely high working speeds. They stack heavy payloads at high speed – with extremely long maintenance intervals.
The hollow-wrist design with its extra-large opening measuring an unbeatable 60 millimeters enables space-saving cell concepts. Discover our palletizers for heavy loads and their outstanding flexibility: KR 300-2 PA, KR 470-2 PA and KR 700 PA
When it comes to heavy loads, the KR 700 PA comes into its own – and stacks pallets higher than any other robot.
Robotics for heavy loads up to 1,300 kilograms (KR 1000 titan)
With the palletizing robots of the KR 1000 titan series, you can lift the heaviest loads with ease. The KR titan PA is the world’s first robot for load capacity of up to 1,300 kilograms – with unrestricted dynamic performance and short cycle times, it is the strongest palletizing robot on the market. With their long reach and minimal disruptive contours, the strong palletizing robots of the titan series open up additional workspace.
