KUKA arc_cellerate

arc_cellerate welding cells from KUKA offer an economical and efficient solution for high-mix/low-volume applications. These systems are available as either single or multi-station setups and come fully equipped to handle various welding tasks.

Enhance Welding Efficiency with Pre-Engineered Robotic Welding Systems

KUKA Pre-Engineered Robotic Welding Systems deliver an economical and efficient solution for high-mix, low-volume applications, featuring the cost-effective KR CYBERTECH nano ARC HW Edition robot. Designed for precision and reliability, these fully equipped systems come in single or multi-station configurations, offering seamless integration into your manufacturing process.

A comprehensive system ready for operation

Each system includes a high-performance KUKA welding robot, a robust power source, and a MIG welding torch, all controlled through an intuitive operator interface. With a compact footprint, modular plug-and-play design, and industry-leading safety features, KUKA’s robotic welding solutions maximize productivity, ensure consistent weld quality, and provide the flexibility needed for diverse applications.

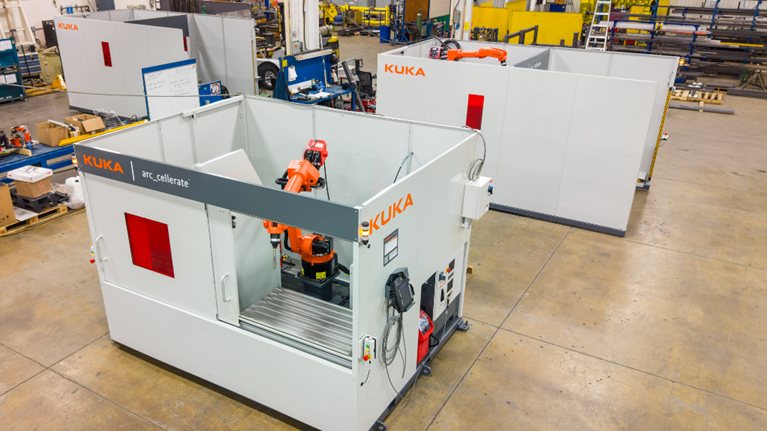

The arc_cellerate SBS is a two-station side-by-side standard welding cell.

Benefits of the pre-engineered welding cells

Robust and Reliable
- Using the KR 6 R2010-2 arc HW E robot provides a robust and repeatable system that will enhance productivity, ensure consistent quality, and provide the necessary flexibility for various welding applications
Simple and Modular
- Simple installation, fast commissioning for processing a wide variety of welding applications
- Modular design for plug and play
Economical
- Economical for high mix / low volume applications
- Small foot print to conserve floorspace
Flexible
- Ideal for manufacturers requiring versatility, these systems handle diverse welding tasks economically while maintaining exceptional reliability.

arc_cellerate Index is a two-station arc welding cell.

Available Cell Layouts

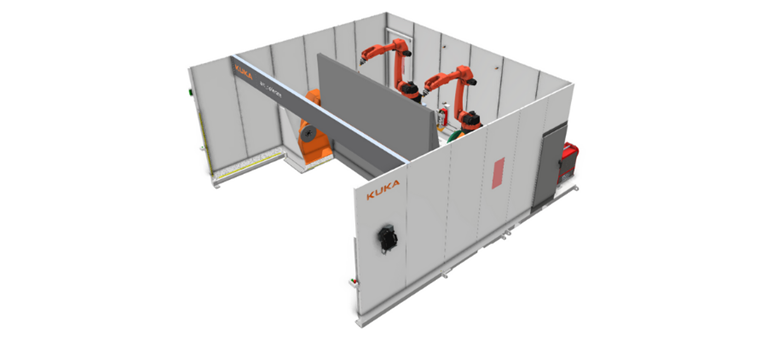

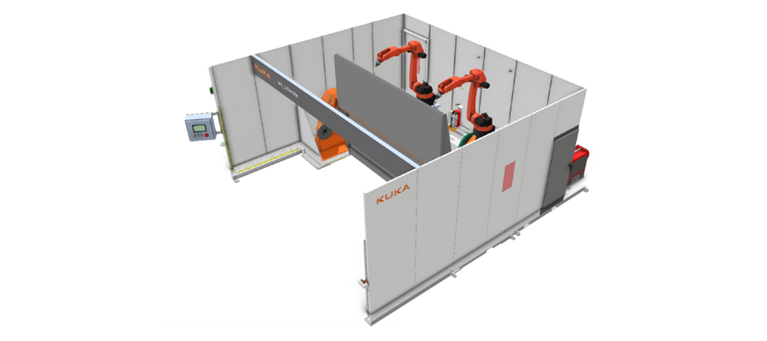

arc_cellerate Ferris

Standard Configuration: 1, 2, or 3 robots

Base Frame: Welded steel base with fork pockets, checker plate floor

Total Size of Cell: 214”L x 227”W x 107”H

Robot KUKA: KR 6 R2010-2 arc HW E

Controller: KR C5 Controller

Positioner Configuration: 2.4 m, 3.2 m, 4.0 m

Input Voltage: 480/575/3/50/60

arc_cellerate SBS

Standard Configuration: Two station - Side by Side (SBS)
Base Frame: Welded steel base with fork pockets, checker plate floor
Total size of cell: 104”L x 130”W x 91”H
Robot: KR 6 R2010-2 arc HW E
Controller: KR C5 Controller
Input Voltage: 480/575/3/50/60
